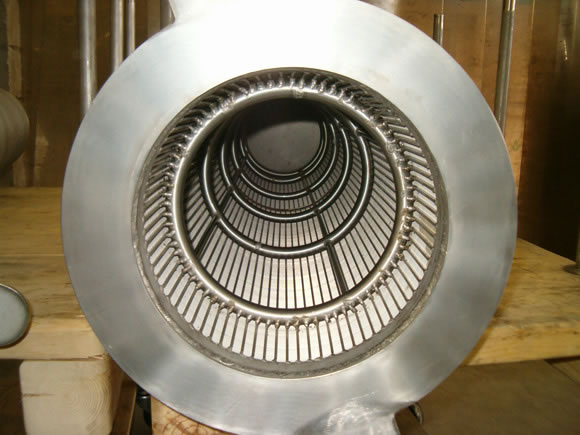

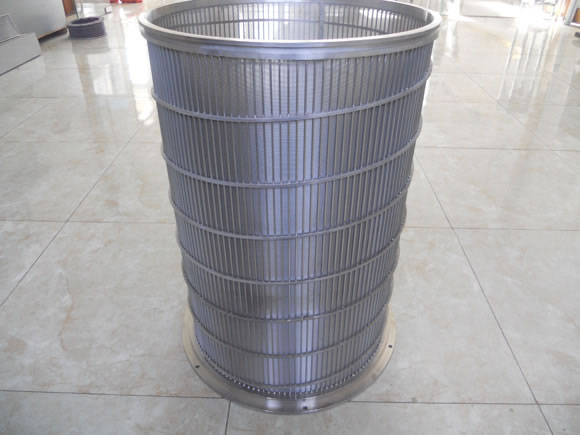

WEDGE WIRE SCREEN CYLINDERS

Wedge wire screen cylinders can be produced in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunions for a rotating effect on your materials.
Our stainless steel Wedge wire screen cylinders can be used in waste water filtration, food processing, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.



Wedge wire screen cylinder specifications:
1) Wedge wire WW M15
screen type: cylindrical
screen material: hastelloy C276
Metal type: wedge wire
Metal grade: WW M15
screen aperture size: 0.5mm
screen diameter: 80mm
screen length: 460mm
2) Wedge wire WW M15
screen type : cylindrical
screen material: SS316L
metal type: wedge wire
metal grade: WW M15
screen aperture size : 0.5mm
screen diameter: 80mm
screen length: 460mm
